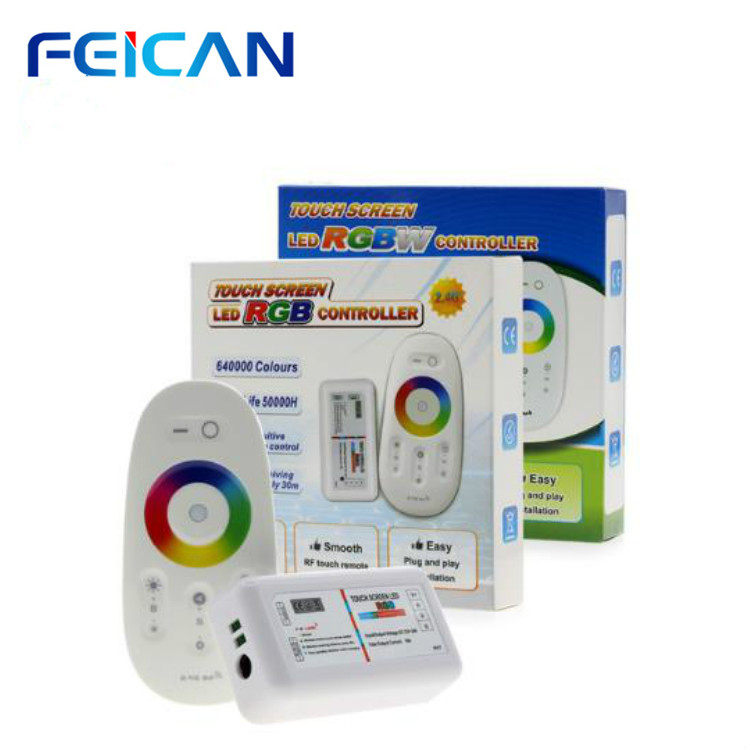

2.4G Touch Screen RGBW LED controller

Technical Specifications:

Working Voltage：DC12-24V

Max Load Control Current：4CH *6A   12V<288W,24V<576W

Standby Power Consumption：0.5W

Output Connection: Common anode

Common anode：85mm*45mm*23mm                                                 Remote

 Working Voltage:AAA*2pcs(3V)

Radio Frequency:2400-2483.5MHz

Modulate Method :GFSK

Transmit Power:6db

Standby Power Consumption:10uA

Remote Distance:20-30m

Dimension:110*52*30mm
