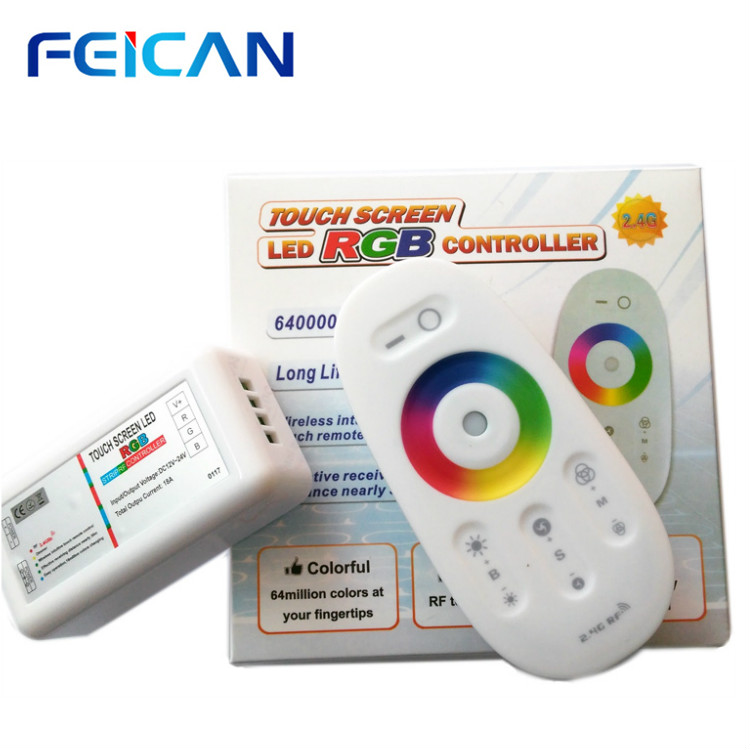

2.4G Touch Screen RGB LED controller

Technical Specifications:

Working Voltage：DC12-24V

Max Load Control Current：3CH*6A   12V<216W, 24V<432W                                                                         Standby Power Consumption：0.5W

Output Connection: Common anode

Common anode：85mm*45mm*23mm                                                 Remote

Working Voltage:AAA*2pcs(3V)

Radio Frequency:2400-2483.5MHz

 Modulate Method :GFSK

Transmit Power:6db

 Standby Power Consumption:10uA

Remote Distance:20-30m

 Dimension:110*52*30mm
