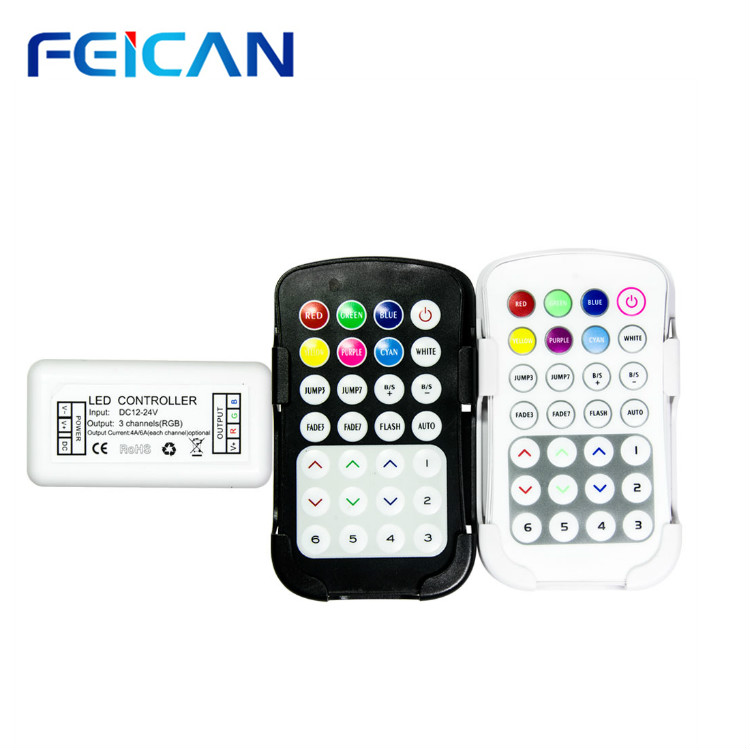

DC12-24V RF 28keys Plastic Shell RGB LED Controller
FC-PB-R28Q(IR/RF LED Controller)

概述技术规格

DC12-24V RF 28keys Plastic Shell RGB LED Controller

Technical Specifiactions:

Power Supply: DC12V-24V
Output: 3 channels (RGB)
Output Current: 4A/6A/CH
Output Power: 4A: 12V<144W, 24V<288W  6A: 12V<216W, 24V<432W
RF Requency: 433Mhz
Static Power Consumption: <1W
External Dimension: L53*W65*H25mm
Remoter Dimension:L113*W56*H22mm
Packing Dimension:L203*W135*H45 mm
Net Weight: 153g Gross Weight:300g
Quantity/Carton: 40pcs packing dimension:460*430*290mm
