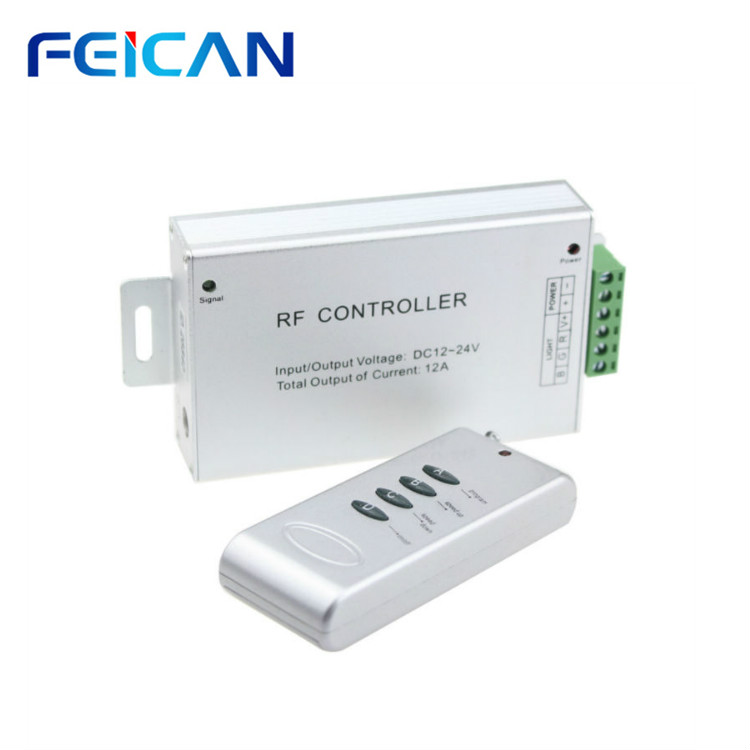

4-key RF controller adopts the advanced micro control unit, it is used for controlling a variety of constant voltage LED lights. For instance, led source , flexible led strip, wall washer, glass curtain wall light and so on; it has many advantages such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through wireless remote control. And according to the actual need of customers, it can carry out jumpy changing, gradual changing, strobe, flash and other effects of change.

Technical Specification:

External Dimension:

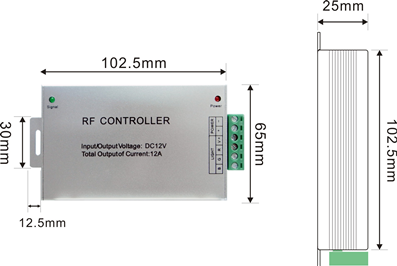

 controller size：

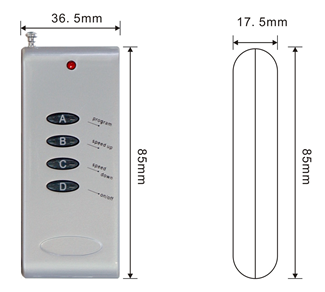

Remote contoller size:

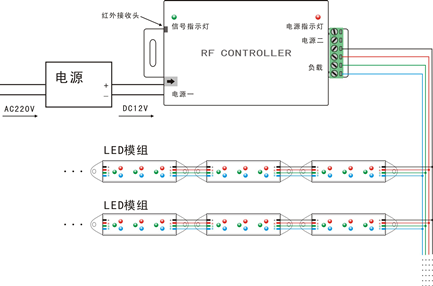

Connecting Drawing:

Direction for using:

1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power；

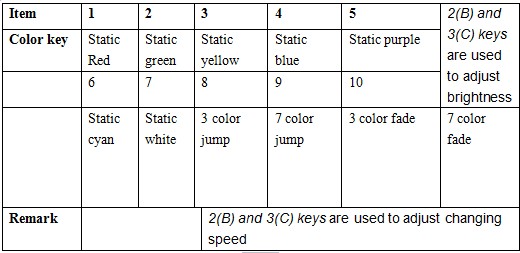

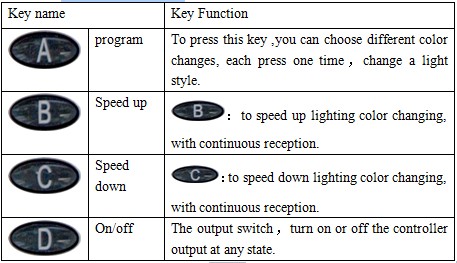

2.Adopt wireless control method, 4 keys in total, function of each button as below:
