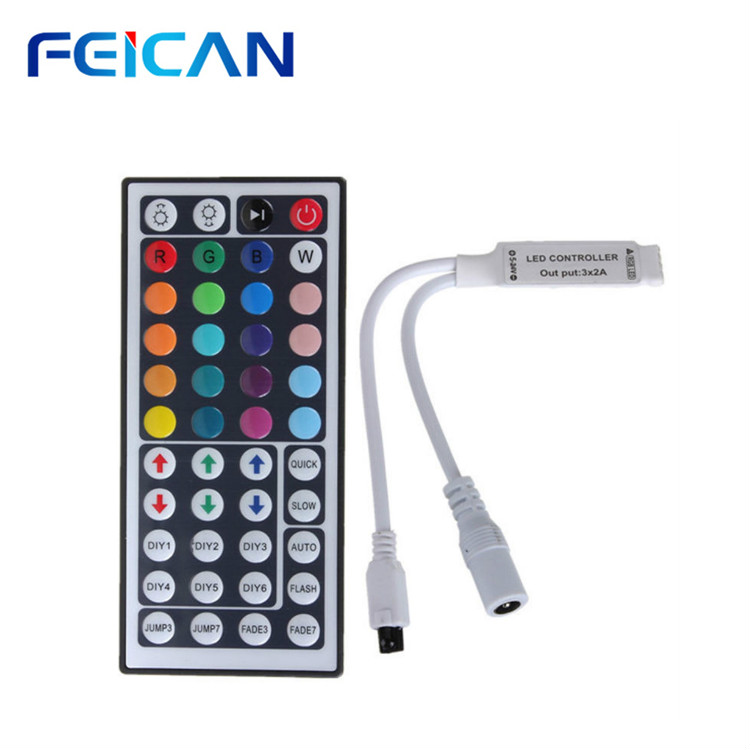

Mini IR 44 Key RGB LED Controller
Products Description:
44 key infrared controller (upgrade) multifunctional LED RGB controller adopts advanced microcomputer control, used to control a variety of the LED light source lamp; has 34 functions of mode selection, low price, simple wiring, convenient to use; can control the change of function of the LED lamp, through the infrared remote controller express regulation, brightness adjustment static color selection, and various dynamic lighting effect.
Technical Specification:
External Dimension:

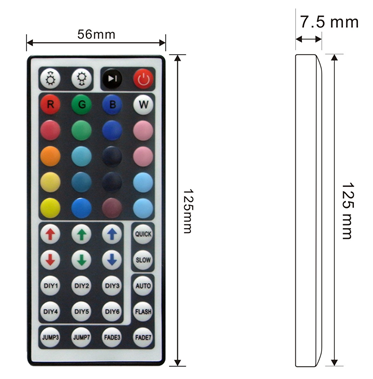

Remote controller Size:
Direction for using:
1.Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
2. Operation: you will receive infrared remote control in front of infrared receiver to ensure that there is no barrier between the remote controller and receiver.

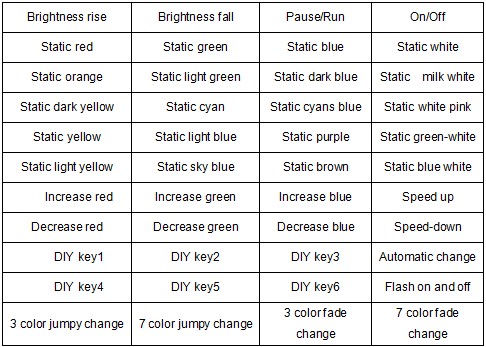

3.The key-press functions are shown in the table as below (in accordance with the key position order)

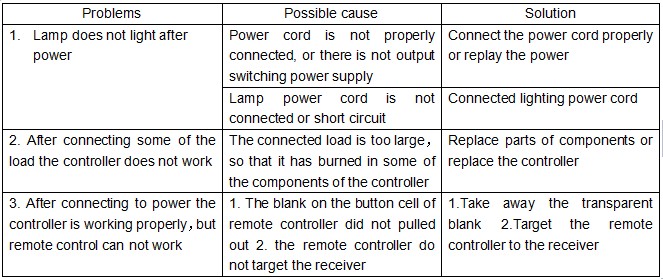

Commen Problem:
